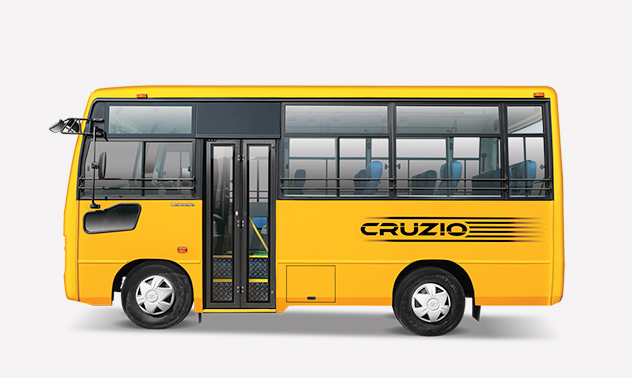

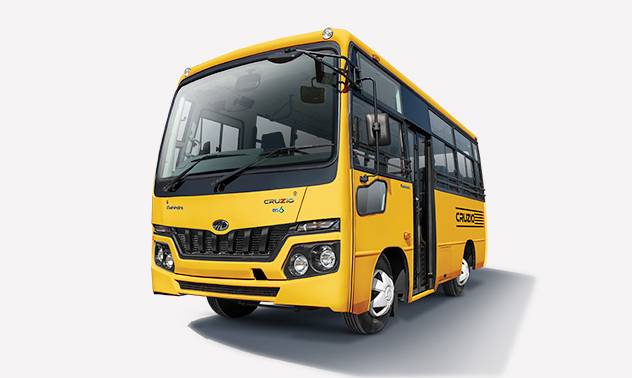

CRUZIO School Bus BS6 – overview

THE ALL NEW MAHINDRA CRUZIO MOST PROFITABLE BUS IN ITS CLASS.

MAKES HOME-SCHOOL-HOME MORE SAFE, COMFORTABLE AND PROFITABLE.

The all-new Mahindra CRUZIO school bus makes the comfort of students and drivers it’s topmost priority. While ensuring that every ride drives in more profit for the owner.

School rides just got much safer.

Mahindra CRUZIO school bus puts the safety of children first and foremost. It has several features that make the journey to school and back, a lot more safe. Like the Vehicle Tracking System (VTS), Fire Detection and Suppression System (FDSS), the Child Check-Mate Feature and Mahindra iMAXX which is used for tracking of bus. That’s not all. It gives you the added assurance of having all the safety features prescribed by the RTO.

BENEFITS

Best-In-Class Mileage
Designed Around Your Safety
Highest Comfort
Maximum Convenience
Additional Seating Capacity
Rollover Compliant
Maximize your profit with Mahindra iMAXX telematics technology

Enquiry about Cruzio School Bus

If information is what you need then we’ve got the answers.

CONTACT US

Call : 098429 47175

Cruzio School Bus BS6 – Features

SCHOOL RIDES JUST GOT MUCH SAFER.

Mahindra CRUZIO school bus puts the safety of children first and foremost. It has several features that make the journey to school and back, a lot more safe. Like the Vehicle Tracking System (VTS), Fire Detection and Suppression System (FDSS), the Child Check-Mate Feature and Mahindra iMAXX which is used for tracking of bus. That’s not all. It gives you the added assurance of having all the safety features prescribed by the RTO.

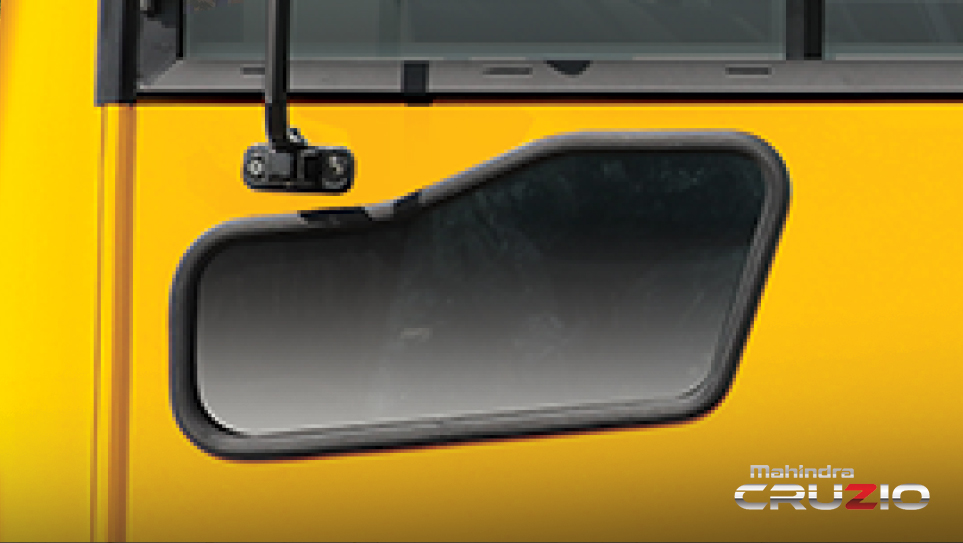

Peep Window on Co-driver Side.

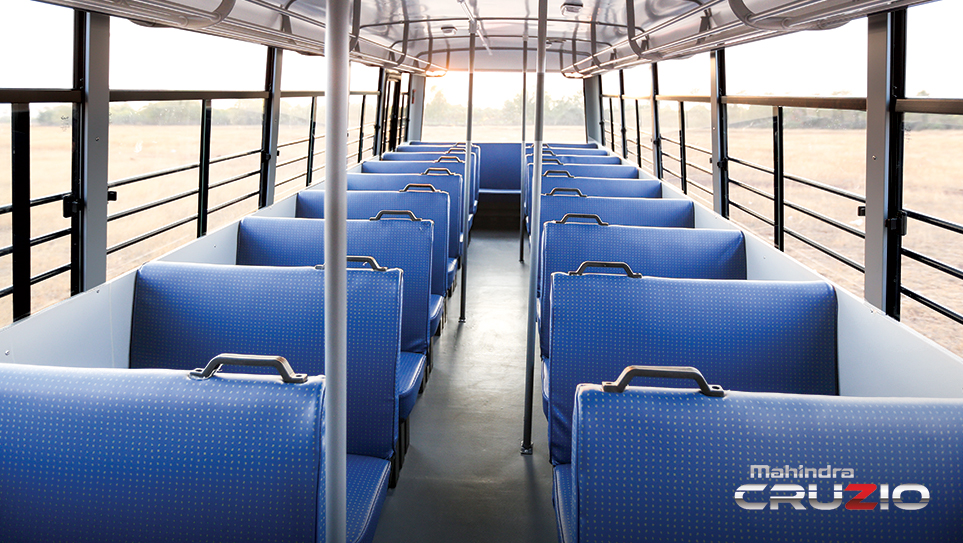

Seats Designed for Utmost Comfort.

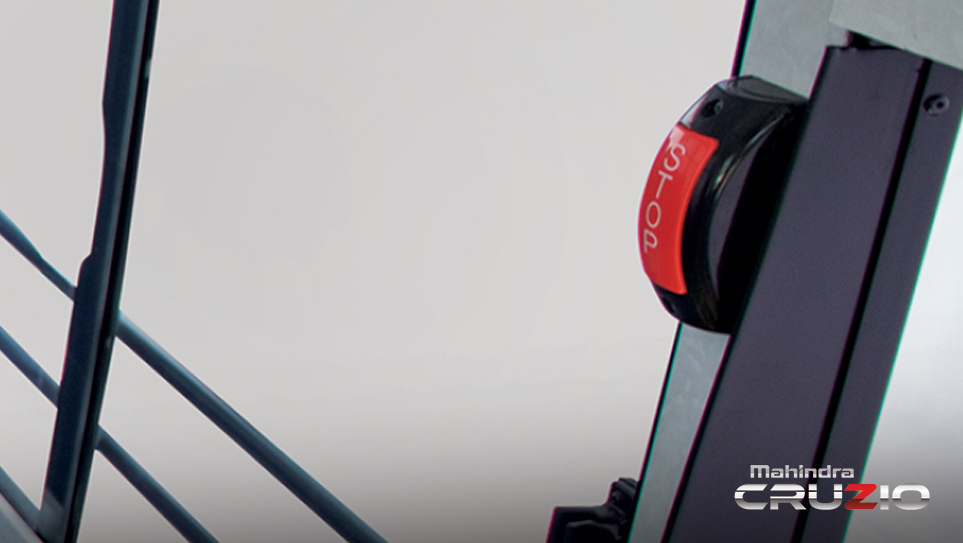

Emergency Button on each Seat Section

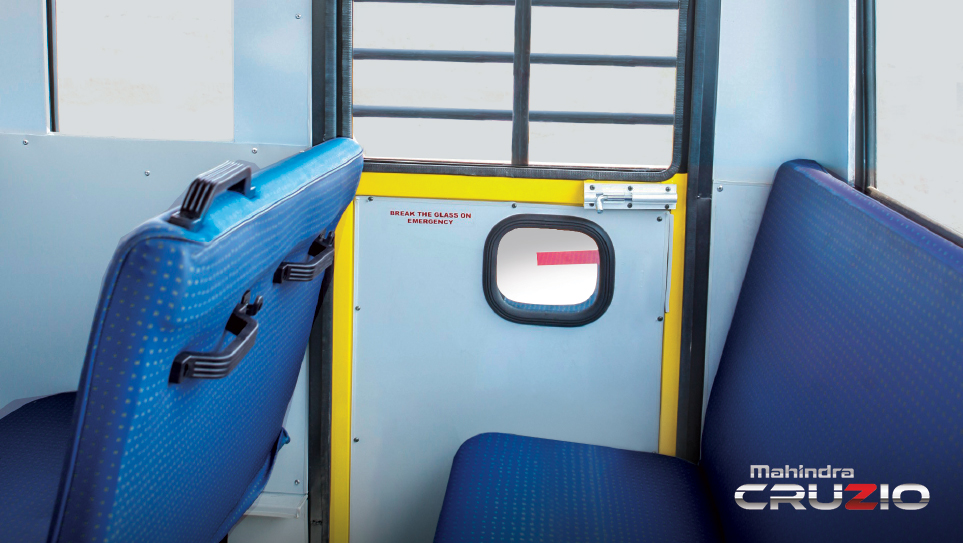

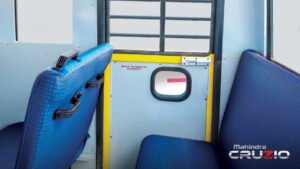

Emergency Exit for Quick Evacuation in Case of Exigency

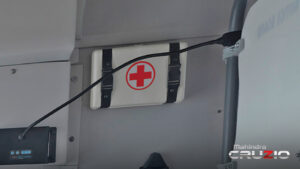

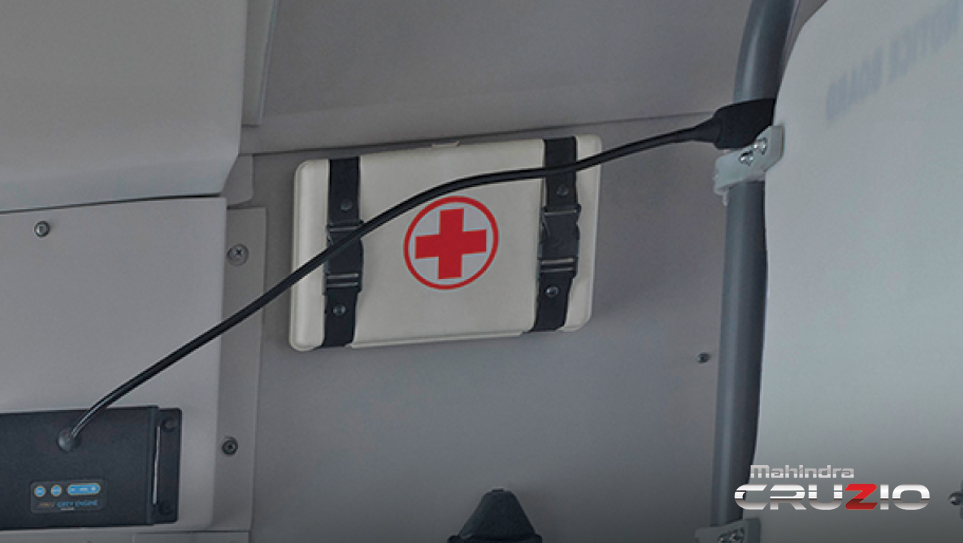

First Aid Box to keep Quick Medical Help always at hand

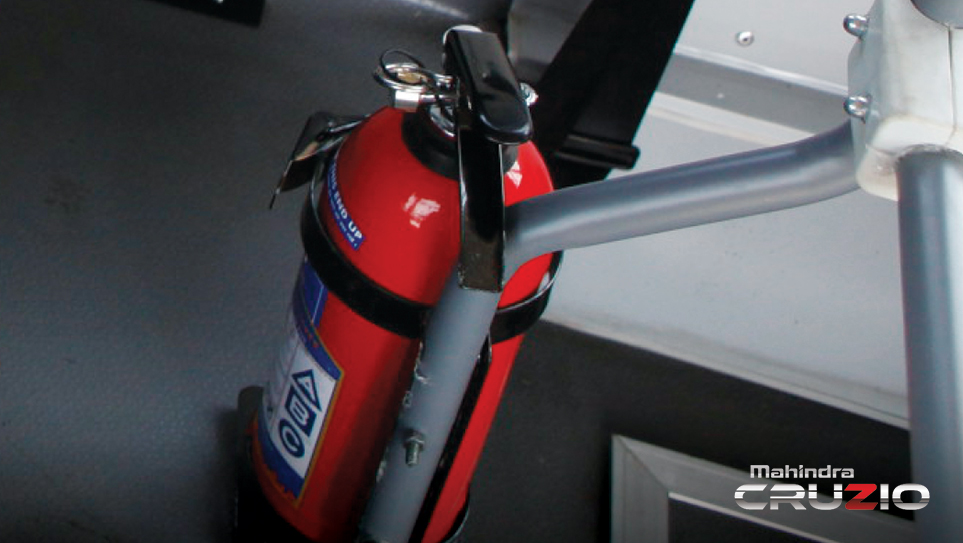

Fire Extinguisher

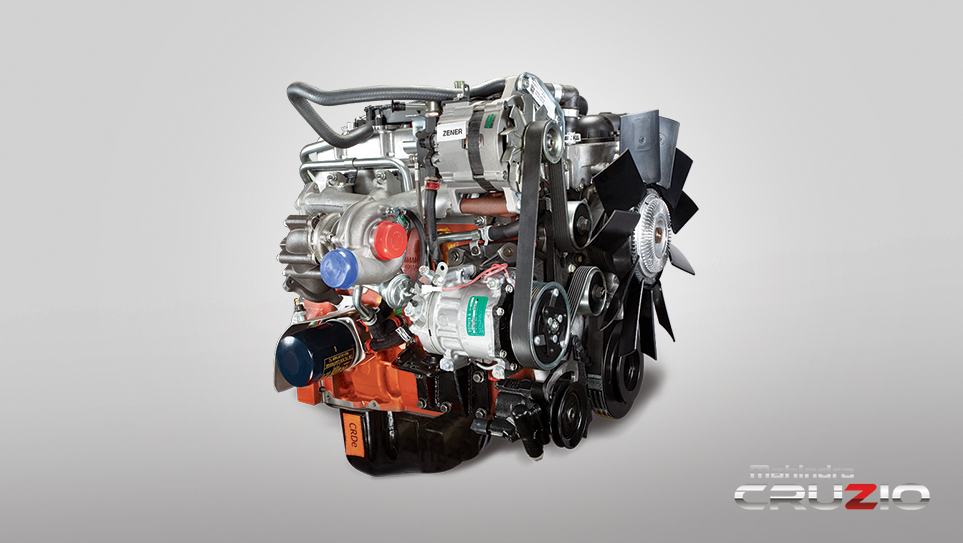

TRUSTED mDi 2.5 LITRE BS6 COMPLIANT ENGINE WITH MORE POWER THAN THE BS4 ENGINE

The engine in the Mahindra CRUZIO has a 1600 Bar Common Rail System, an Alternator Wastegate Turbocharger and an Electronic EGR. They work together to give you improved performance in every aspect, even delivering higher mileage. An Electronic Viscous Fan makes sure that the engine temperature is always within a safe range. And a Higher Capacity Alternator makes sure higher electrical loads are not a problem.

Model		CRUZIO 2750 BS6	CRUZIO 3100 BS6	CRUZIO 3370 BS6	CRUZIO 3800 BS6
Engine		mDi 2.5 litre BSVI Turbocharged Intercooler Engine
Max. Power		60 kW @ 3200 rpm
Max. Torque		220 Nm @ 1250 – 2200 rpm
Gear Box		5 Speed Synchromesh Gear Box
Suspension		Parabolic Leaf Spring with Anti Roll bar (Front & Rear)
Clutch		280 mm Diameter with Clutch booster
Tyres		7.50 X 16-16PR
Steering		Power Steering
Brake System		Hydraulic Brakes with ABS
Fuel Tank (litre)		60 litre
Ad Blue Tank (litre)		13 litre
Battery		12 V – 100 Ah
Alternator		110 Amp
Wheelbase		2750 mm	3100 mm	3370 mm	3800 mm
Front Overhang		1125 mm	1125 mm	1125 mm	1125 mms
Rear Overhang		1250 mm	1595 mm	1980 mm	2225 mm
Permissible Length		5125 mm	5820 mm	6475 mm	7150 mm
Permissible Width		2200 mm	2200 mm	2200 mm	2200 mm
Permissible Height		2900 mm	2900 mm	2900 mm	2900 mm
TCD		11300 mm	12500 mm	13500 mm	15000 mm
GVW		5000 kg	5450 kg	6300 kg	6800 kg
Model		CRUZIO 4250 BS6	CRUZIO 5310 BS6
Engine		mDI Tech 3.5 litre BS6 Turbocharged Intercooler Engine
Max. Power		125 HP @ 2500 rpm
Max. Torque		375 Nm @ 1300-2000 rpm
Gear Box		5 Speed Synchromesh Gear Box with overdrive
Suspension		Parabolic Leaf Spring with Anti Roll bar (Front & Rear)
Clutch		310 mm Diameter with Clutch booster
Tyres	7.5R X 16-16PR		8.25R X 16-16PR
Steering		Power Steering
Brake System		Hydraulic Brakes with ABS
Fuel Tank (litre)		120 litre
Battery		12 V – 100 Ah
Passenger Door		1 Jack-Knife type
Floor		Anti Skid Vinyl Flooring
Hatrack		Tubular Hatrack
Staff Seating		32+D HHR,Shell	32+D HHR,Shell
School Seating		41+D – 3×2	51+D – 3×2
Wheelbase		4250 mm	5310 mm
Overall Length		7225 mm	9620 mm
Overall Width		2200 mm	2200 mm
Overall Height		2986 mm	3001 mm
GVW		8270 kg	9250 kg
