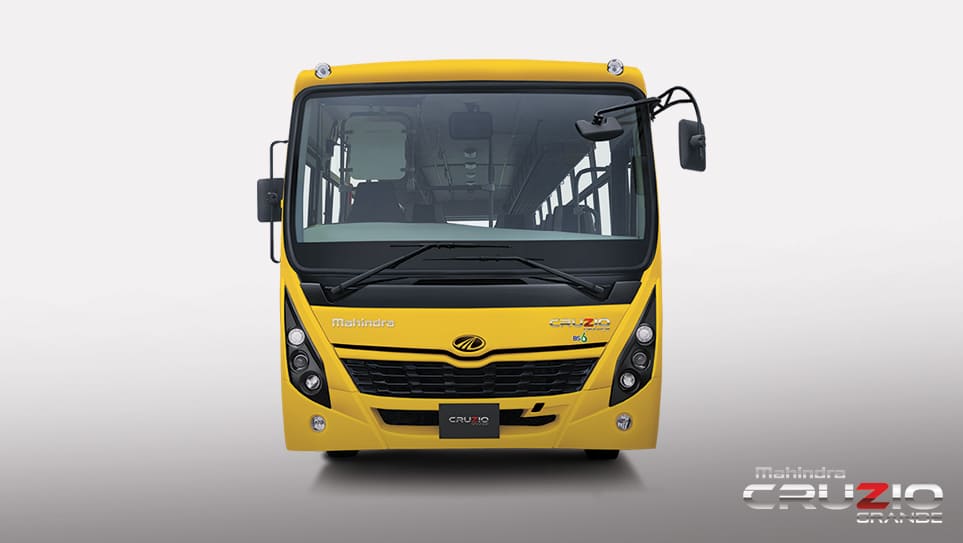

Cruzio Grande School Bus BS6 – overview
ALL NEW MAHINDRA CRUZIO GRANDE THE MOST PROFITABLE BUS IN ITS CLASS.
THE CLASS-TOPPER IN SAFETY, CONVENIENCE AND COMFORT.
KEEPING OUR MOST PRECIOUS CARGO SAFE AND COMFORTABLE.
Students are the most precious. And nothing is more important than their safety and comfort. Which is why the Mahindra CRUZIO GRANDEschool bus is designed around the students, keeping their needs in mind. It comes with features like the Mahindra iMAXX telematics technology that lets you track the school bus at any given point of time. And a parabolic suspension for Best-In-Class comfort. All this, because children deserve a happy ride to school and back, every day.
BENEFITS
- Best-In-Class Mileage
- Designed Around Your Safety
- Highest Comfort
- Maximum Convenience
- Additional Seating Capacity
- Maximize your profit with Mahindra iMAXX telematics technology
THE LPO ADVANTAGE

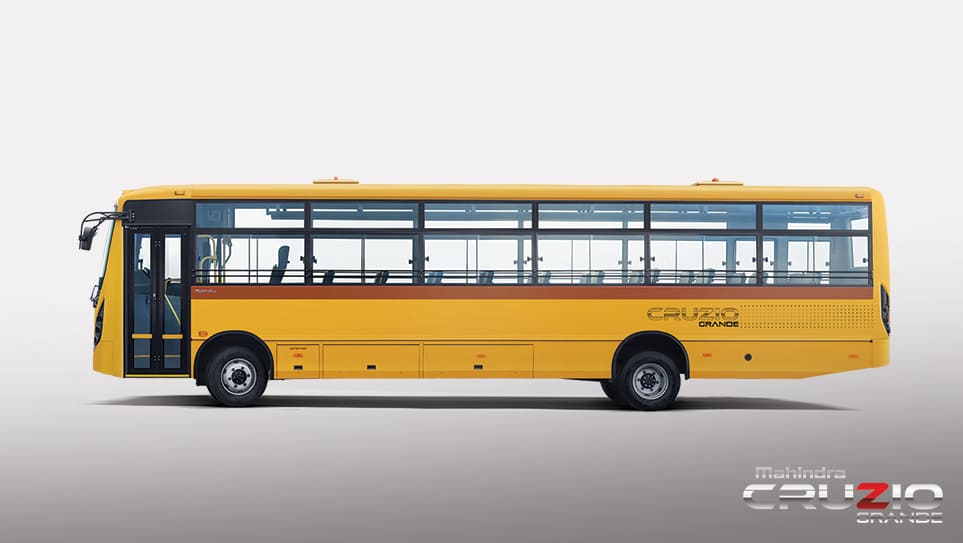

LPO means ‘Long Platform Overhang’. This feature helps shift more control into the hands of the driver, enabling him with better visibility and thus better safety of children. Another LPO advantage is optimum space utilisation. The door of the bus is ahead of the front wheel. This allows space for an extra seat, which means you can accommodate more children per ride.
ENJOY ERGONOMICALLY DESIGNED COMFORT.
Mahindra CRUZIO GRANDE is designed with thoughtful features that strike the perfect balance to keep both students and the driver comfortable.
- Best-In-Class ride comfort with parabolic suspension
- Low NVH (Noise Vibration Harshness)
- Reduction in the window sill height for hand rest
- Smartly located sliding windows with better ventilation and illumination
- Stylish front and rear FRP fascia
- Wide and Comfortable seats
Enquiry about Cruzio Grande School Bus
If information is what you need then we’ve got the answers.
CONTACT US
Cruzio Grande BS6 – Features
SCHOOL RIDES JUST GOT MUCH SAFER
Mahindra CRUZIO GRANDE school bus puts the safety of children first and foremost. It has several features that make the journey to school and back, a lot more safe. Like the Vehicle Tracking System (VTS), Fire Detection and Suppression System (FDSS), Remotely Piloted Aircraft Systems (RPAS), Roof Hatch to provide a much-needed emergency escape, Tubeless Tyres that resist punctures and have a much longer life, Wider Body for easy entry and effortless movement inside the bus, Rollover Compliance that gives passengers an extra assurance of safety and the Child Check-Mate Feature. That’s not all. This bus gives you the added assurance of having all the safety features prescribed by the RTO.

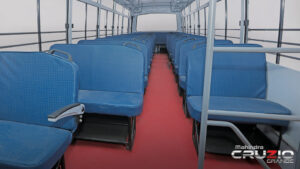

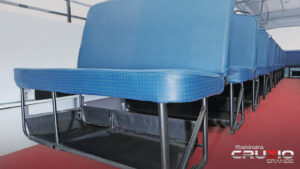

Wide and Comfortable School Bus Seats Designed for Maximum Safety and Convenience.

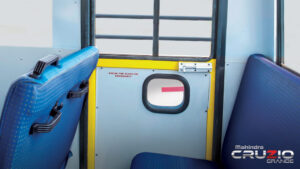

Emergency Exit for Quick Evacuation in Case of Exigency.

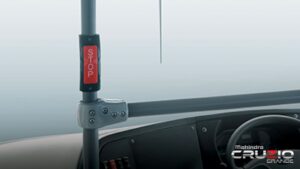

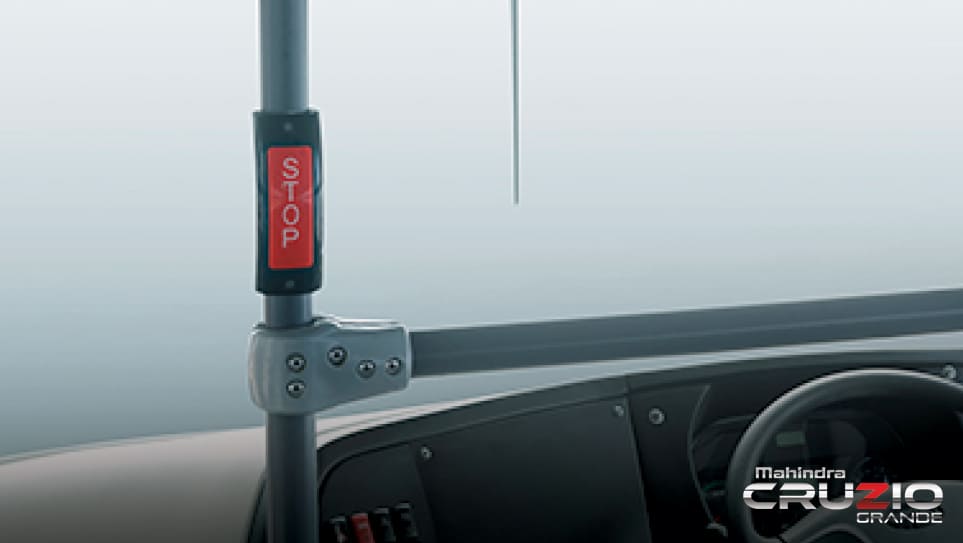

AIS140 Compliant and Emergency Button on each Pillar.

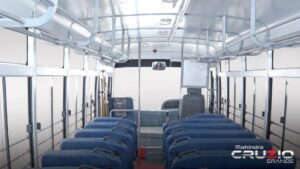

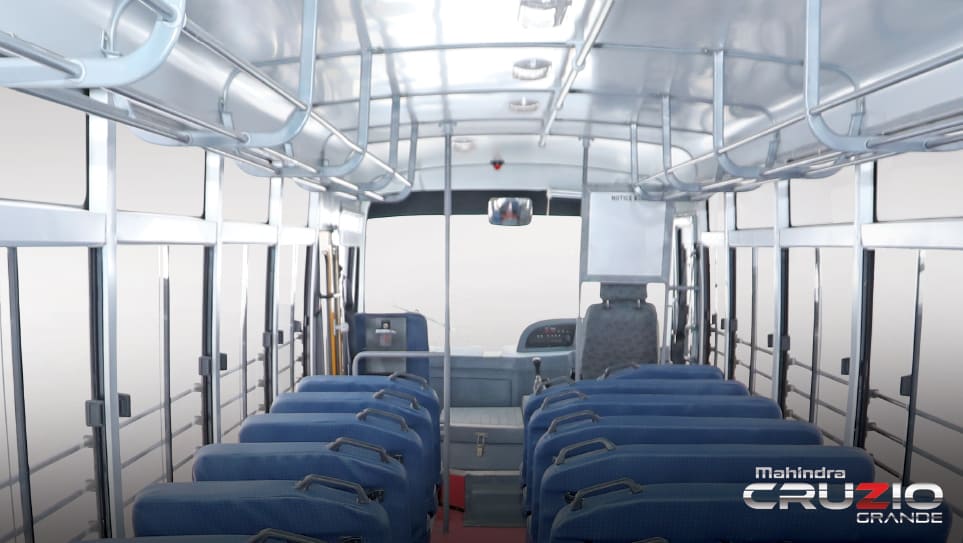

Modified Hat-Rack and Spacious Interior.
Bag Rack

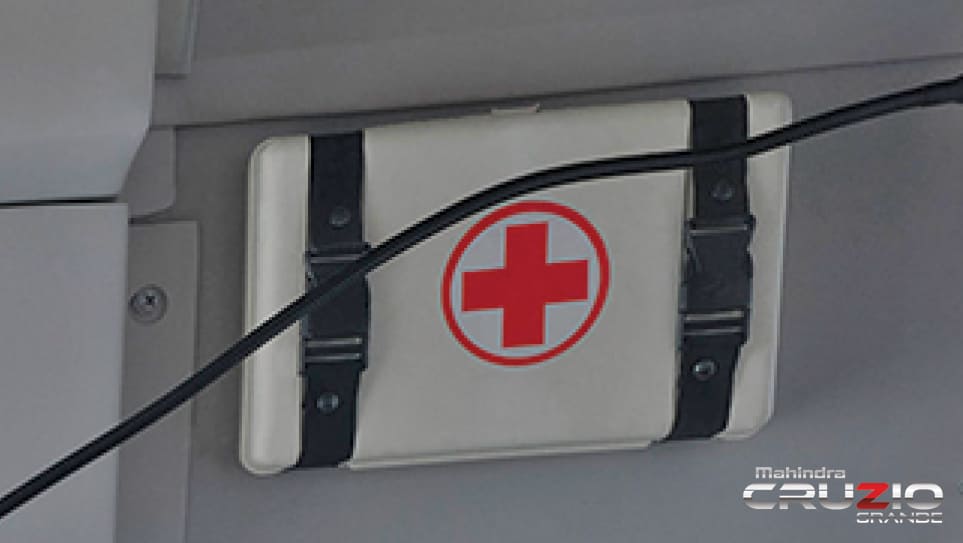

First Aid Box to keep quick Medical Help always at Hand

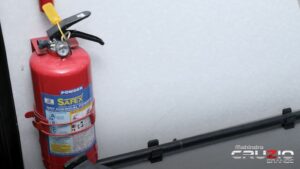

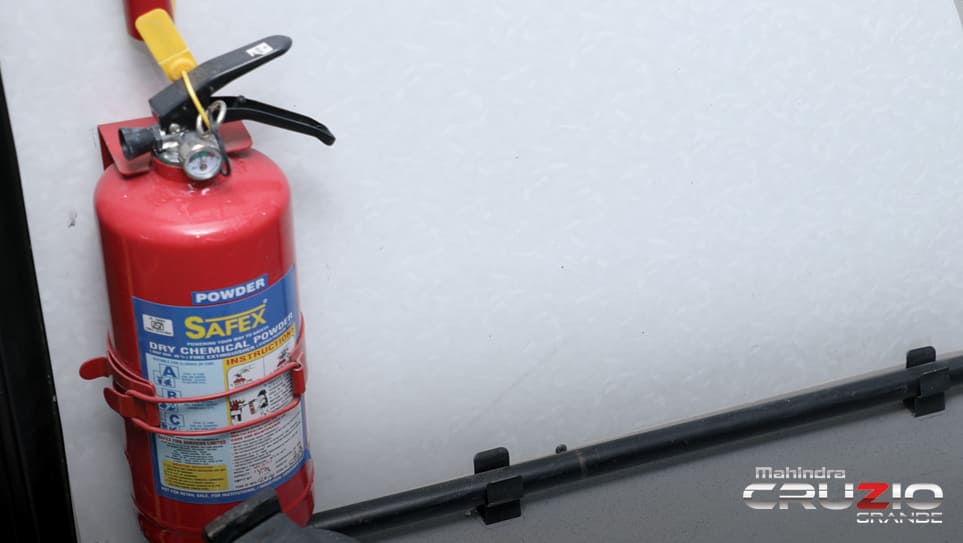

Fire Extinguisher

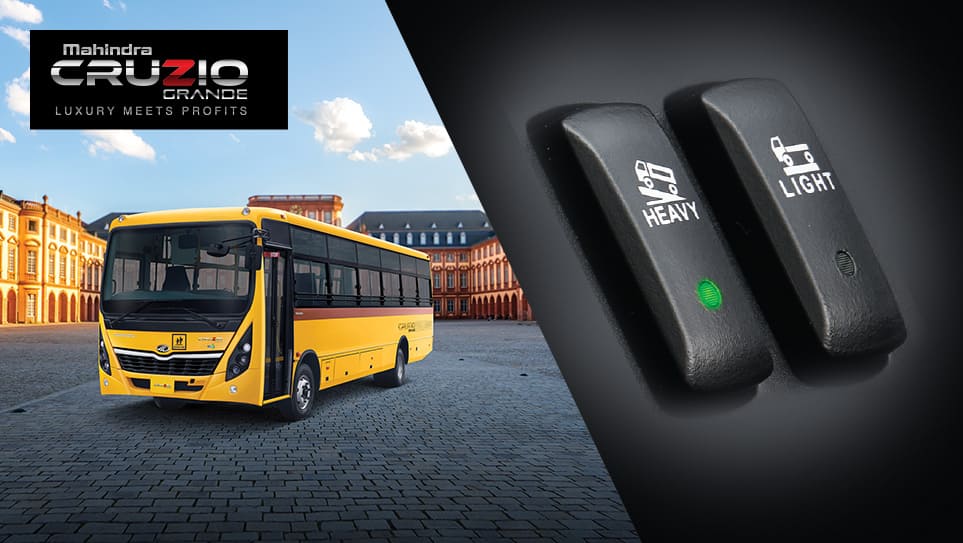

MILEAGE AND POWER AT THE TOUCH OF A SWITCH.
Developed by Mahindra to give your business a competitive edge, the FuelSmart switches let you choose between superior mileage and optimum power as and when your business demands. Turn on the Heavy mode when your bus is full. And simply switch on the Light mode when running empty. Each mode squeezes the maximum efficiency from the mDi Tech FuelSmart engine.
WHAT’S AT THE HEART OF MAHINDRA CRUZIO GRANDE?

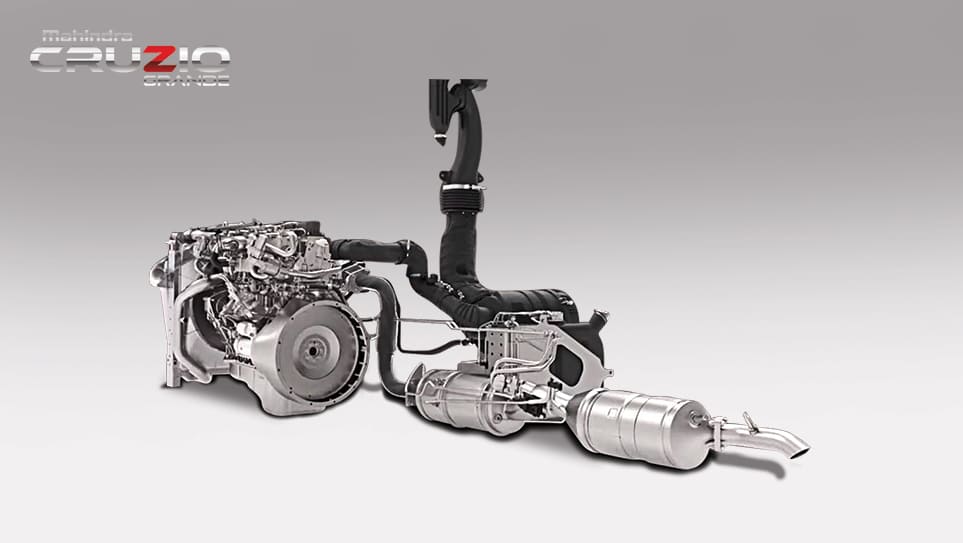

This luxurious vehicle is powered by Mahindra’s mDi Tech FuelSmart engine. The engine is powerful, super-efficient, low on friction, and comes with FuelSmart technology. But most importantly, it is backed by Mahindra’s reputed CRDe expertise of more than a decade. This engine has an 1800 Bar Common Rail System and an Alternator Wastegate Turbocharger that together give you improved performance; by delivering a unique combination of higher power and higher fuel economy. A Hydraulic Lash Adjuster (HLA) means no more tappet setting every now and then. Same with the Auto Belt Tensioner which sets itself and requires no manual adjustments.
Then there’s the gear driven Air Compressor which enhances engine reliability to a high degree. An Electronic Viscous Fan makes sure that the engine temperature is always within a safe range. A Higher Capacity Alternator makes sure higher electrical loads are not a problem. There’s even an Aluminium Fywheel Housing just to make sure you get the most optimum aggregates and the best performance.
MAHINDRA BS 6 AFTER TREATMENT SYSTEM LOWER AdBIue MEANS HIGHER EARNINGS.
Mahindra CRUZIO GRANDE is not only built for profits but also for savings. Use Mahindra recommended AdBlue Maximile Plus for lower AdBlue Consumption that means fewer trips for refueling and lower AdBlue expenses. And what does this mean for your transport business? Increased earnings of course.
All this comes from the company’s belief that the journey from BS4 to BS6 is not just about a technological change but an effort to change people’s mindset of doing business in the transport industry. This belief meant that Mahindra Truck and Bus had to make minimal changes to its vehicles because they were already BS6 ready at the BS4 stage with 90% of the parts being the same. Which benefits our customers immensely as they don’t have to worry about availability of spare parts and after-sales service.
Cruzio Grande School Bus BS6 – Specifications
| Model | CRUZIO GRANDE 4440 BS6 | CRUZIO GRANDE 4880 BS6 | CRUZIO GRANDE 5360 BS6 | ||||
|---|---|---|---|---|---|---|---|
| Engine | 3.5 litre mDi Tech Fuel Efficient Engine | ||||||
| Max. Power | 103 kW (140 HP) @ 2400 rpm | ||||||
| Max. Torque | 525 Nm @ 1250-1800 rpm | ||||||
| Gear Box | 6 Speed Synchromesh Gear Box with overdrive | ||||||
| Suspension | Parabolic Leaf Spring with Anti Roll bar (Front & Rear) | ||||||
| Clutch | 362 mm Diameter with Clutch booster | ||||||
| Tyres | 235/75 R17.5 14PR Tubeless | ||||||
| Steering | Power Steering | ||||||
| Brake System | Air Brakes with ABS | ||||||
| Fuel Tank (litre) | 120 litre | ||||||
| Battery | 12 V – 120 Ah | ||||||
| Passenger Door | 1 Jack-Knife type | ||||||
| Floor | Anti Skid Vinyl Flooring | ||||||
| TCD | 15400 mm | 16800 mm | 17600 mm | ||||
| Staff Seating | 36+D HHR 32+D PB | 40+D HHR 36+D PB | 44+D HHR 40+D PB | ||||
| School Seating | 49+D 3×2 57+D 3×3 | 54+D 3×2 63+D 3×3 | 62+D 3×2 72+D 3×3 | ||||
| Wheelbase | 4440 mm | 4880 mm | 5360 mm | ||||
| Overall Length | 8950 mm | 9655 mm | 10415 mm | ||||
| Overall Width | 2350 mm | 2350 mm | 2350 mm | ||||
| Overall Height | 3020 mm | 3020 mm | 3020 mm | ||||
| GVW | 9200 kg | 9600 kg | 10100 kg | ||||
