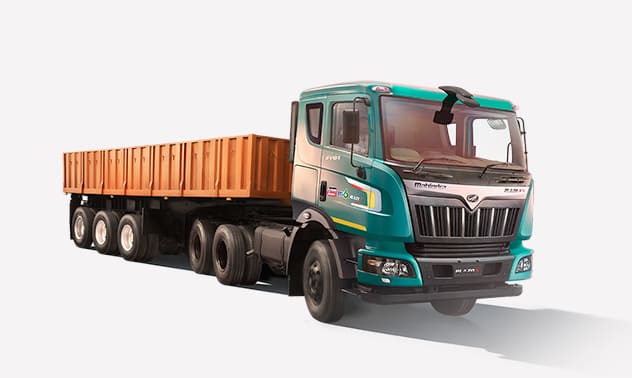

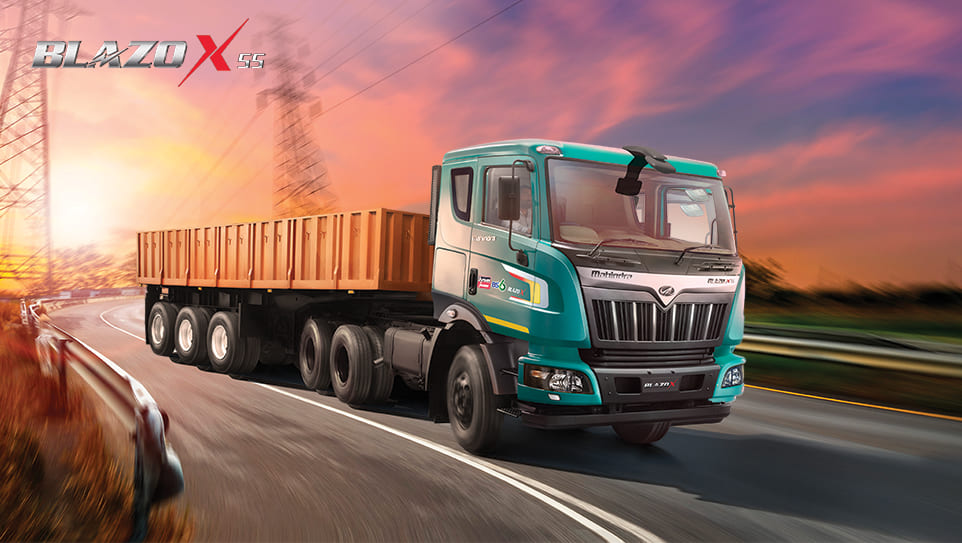

Blazo X 55 Tractor Trailer BS6 – Overview
A BIG HEART FOR BIG CARGO AND BIG MILEAGE.
- 7.2 litre, high torque, low r/min engine
- mPOWER FuelSmart engine with multimode switches

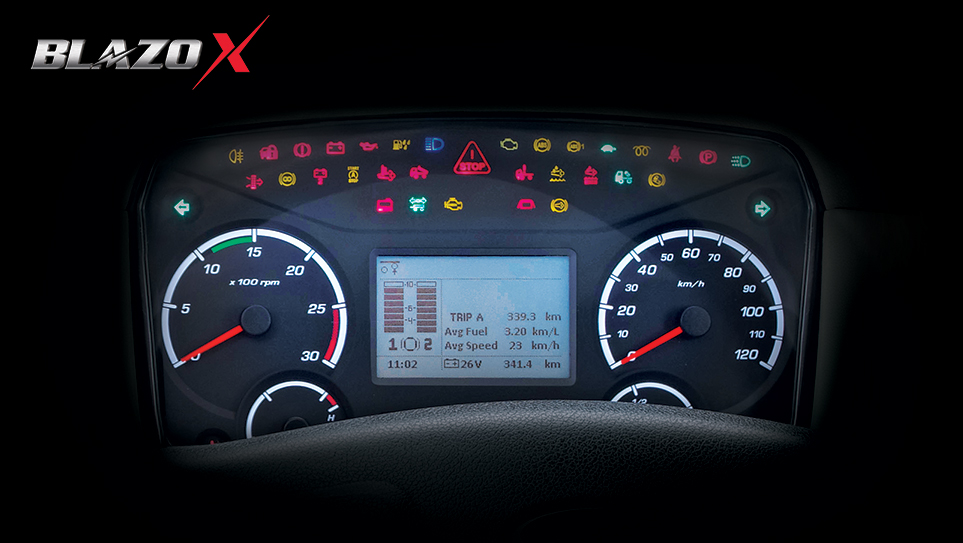

- Driver Information System
- Next-Gen features and improved cabin for better productivity
- Better payload capacity
- Maximize your profit with Mahindra iMAXX telematics technology
Enquiry about BLAZO X 55
If information is what you need then we’ve got the answers.
CONTACT US
Blazo X 55 Tractor Trailer BS6 – Specifications
| GVW | 55000 kg | ||||||
|---|---|---|---|---|---|---|---|
| Engine | mPOWER 7.2 litre FuelSmart | ||||||
| Max. Power | 206 kW @ 2200 r/min | ||||||
| Max. Torque | 1050 Nm @ 1200-1700 r/min | ||||||
| Wheelbase | 4100 mm / 4050 mm | ||||||
| Gear Box | ZF 9 Speed | ||||||

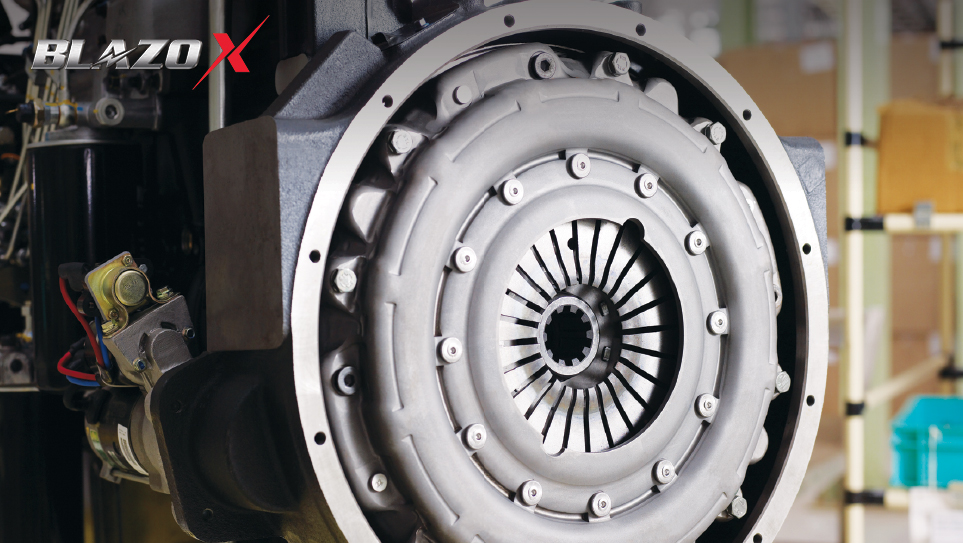

| Clutch (Diameter) | 395 mm Diaphragm with clutch wear indicator organic type | ||||||
| Gradeability | 21.70% | ||||||
| Suspension – Front | Parabolic Leaf Spring with Shock Absorber | ||||||
| Suspension – Rear | Bell Crank Type Suspension Optional : Inverted leaf Bogie Suspension | ||||||
| Rear Axle | Tandem Banjo Type Single Reduction | ||||||

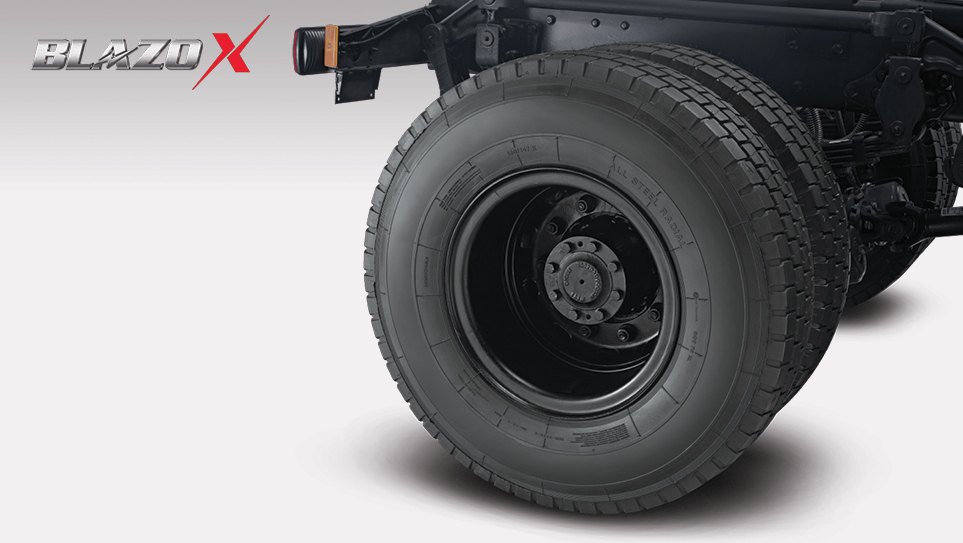

| Tyres | 11R20 16PR, Optional: 11 X 20 | ||||||

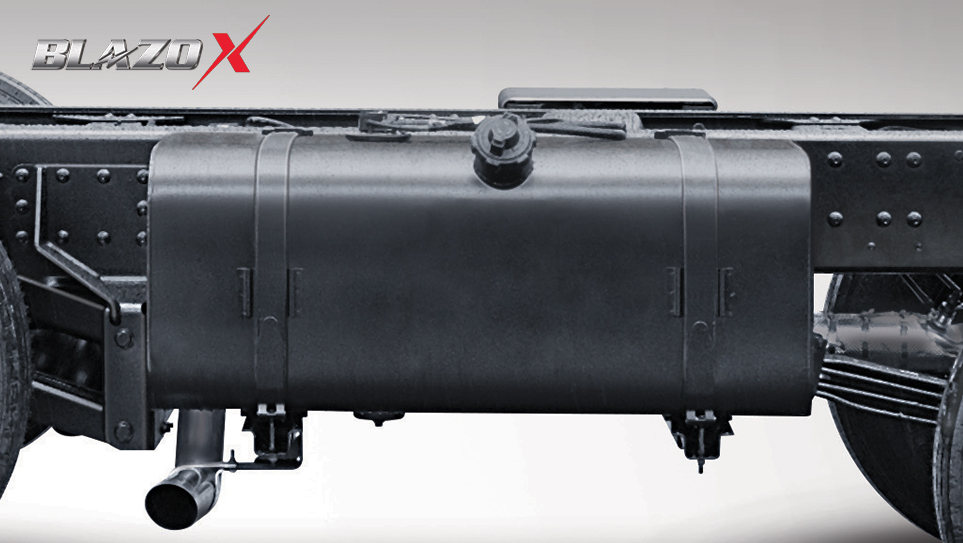

| Fuel Tank Capacity (litre) | 415 litre | ||||||
| AdBlue® Tank Capacity | 50 litre | ||||||

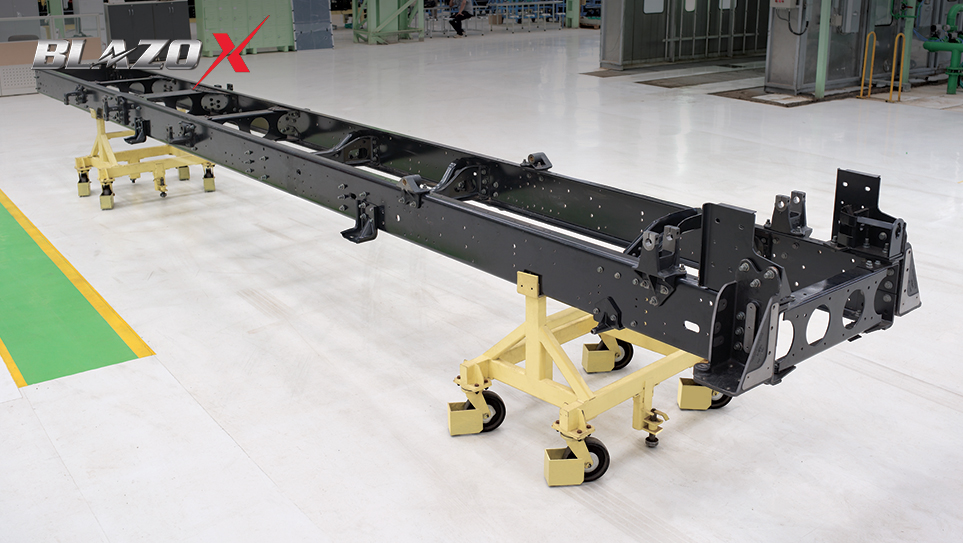

| Chassis Cross Section (mm) | 285 X 70 X 8.5 with Reinforcement | ||||||

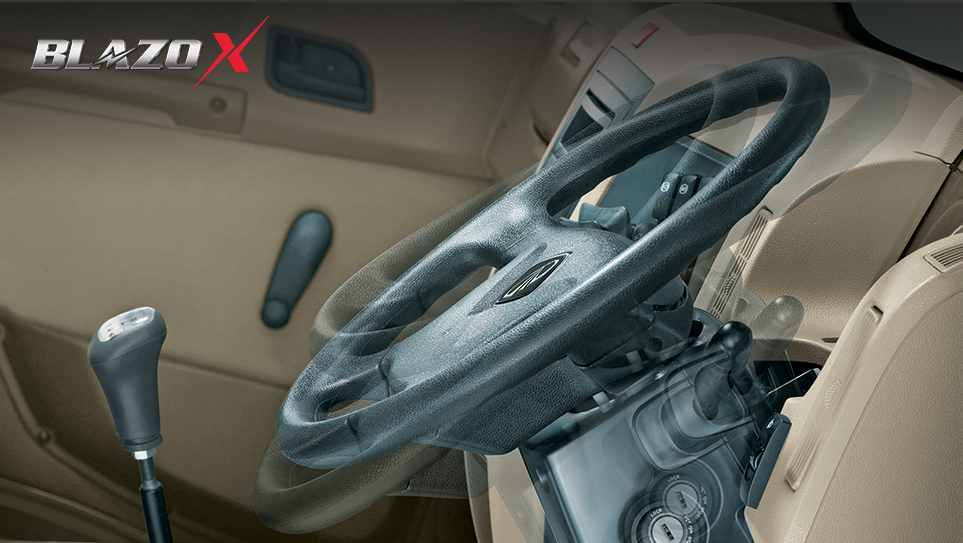

| Steering | Hydraulic Power Assist Tilt & Telescopic | ||||||
| Brakes | Full Air S Cam Dual circuit ABS 10 BAR system | ||||||
| System Voltage | 24 V (2X12) | ||||||
| Battery Rating | 150 Ah | ||||||
| Cabin | Single Sleeper Cab (AC Optional) | ||||||
| Max. Speed | 80 km/h (Regulated) | ||||||
| Min. Ground Clearance | 250 mm | ||||||
| ATS System | BS6 Compliant ATS with DOC/ DPF + SCR/ ASC | ||||||
*Blower is standard Fitment
AdBlue® is a registered trade name of the Verband der Automobilindustrie e. V. (VDA)
CONSTRUCTION MATERIAL
MACHINERY
STEEL
CONTAINER
BULKERS
OVER DIMENSIONAL CARGO
