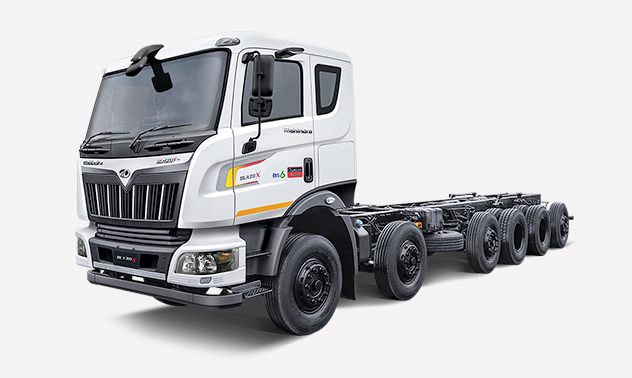

Blazo X 49 Cargo BS6 – Overview
EXTRA MILEAGE, EXTRA PAYLOAD, EXTRA PROFITS.
- 7.2 litre, high torque, low r/min engine
- mPOWER FuelSmart engine with multimode switches

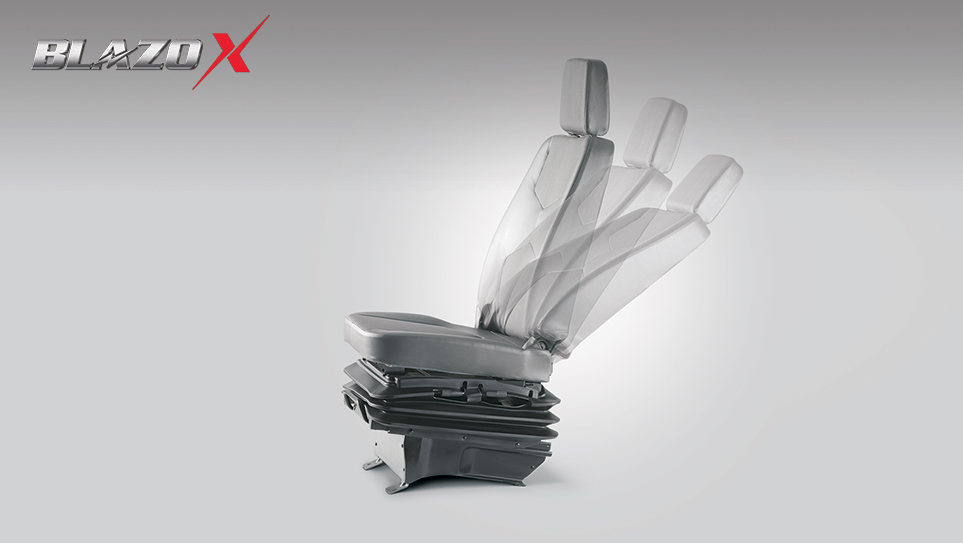

- Next-gen features and improved cabin for better productivity

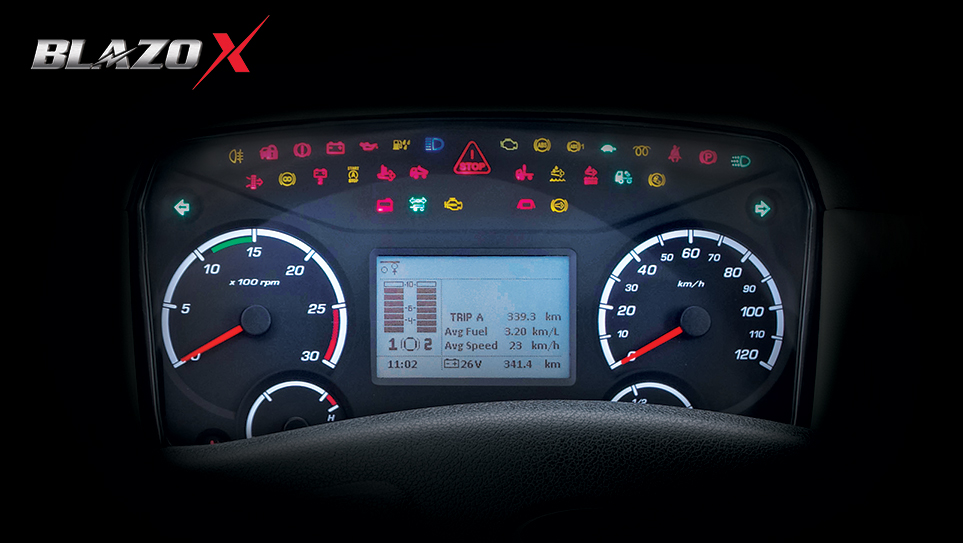

- Driver Information System
- Maximize your profit with Mahindra iMAXX telematics technology
Enquiry about BLAZO X 49
If information is what you need then we’ve got the answers.
CONTACT US
Blazo X 49 BS6 – Specifications
| GVW | 49000 kg | ||||||
|---|---|---|---|---|---|---|---|

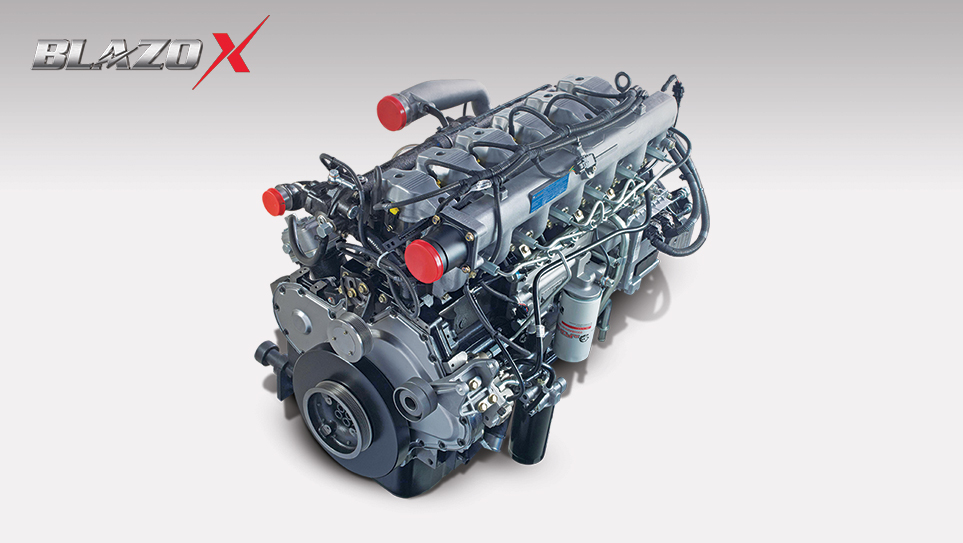

| Engine | mPOWER 7.2 litre FuelSmart | ||||||
| Max. Power | 206 kW @ 2200 r/min | ||||||
| Max. Torque | 1050 Nm @ 1200-1700 r/min | ||||||
| Wheelbase | 6770 mm | ||||||
| Gear Box | Eaton 9 Speed | ||||||

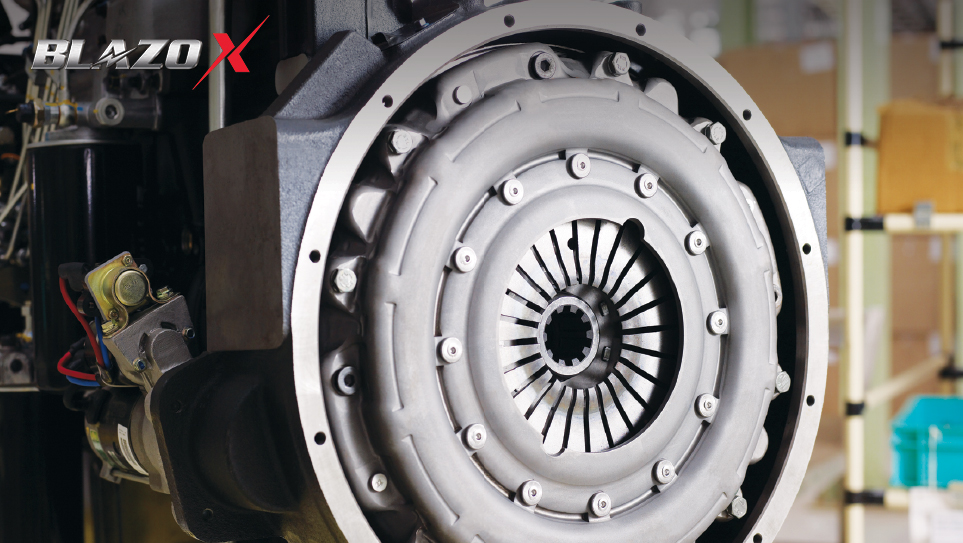

| Clutch (Diameter) | 395 mm Diaphragm with clutch wear indicator organic type | ||||||
| Gradeability | 25.10% | ||||||
| Suspension – Front | Parabolic Leaf Spring with Shock Absorber | ||||||
| Suspension – Rear | Bell Crank Type Suspension | ||||||
| Rear Axle | Solo Banjo Type Single Reduction | ||||||

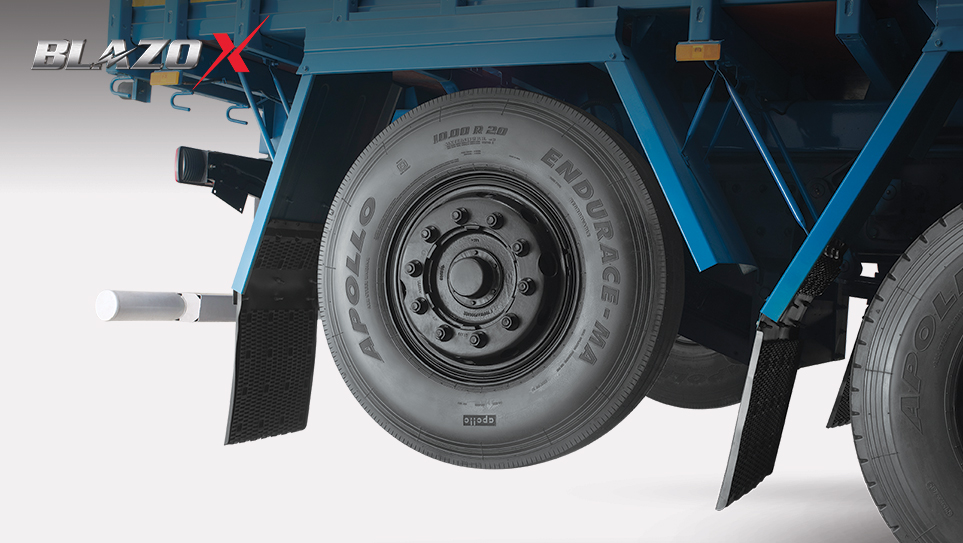

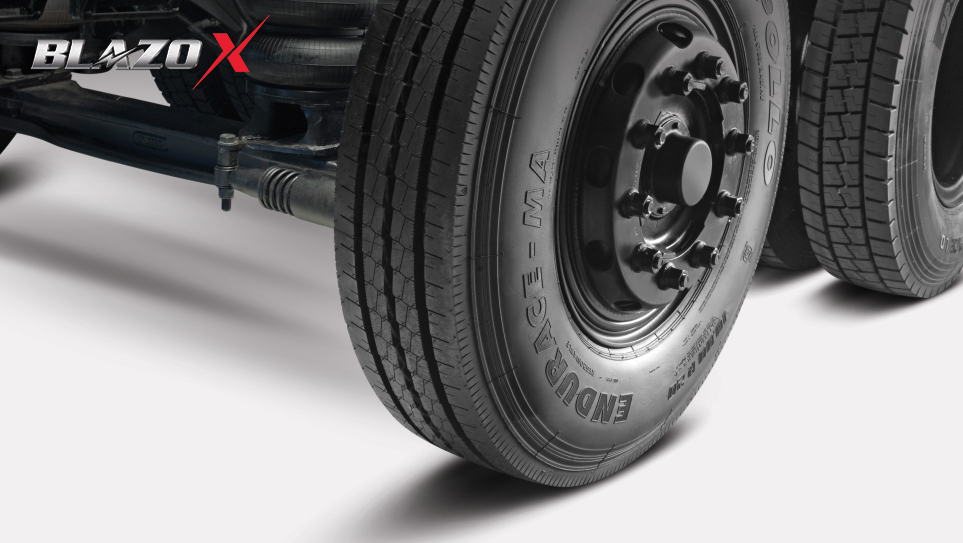

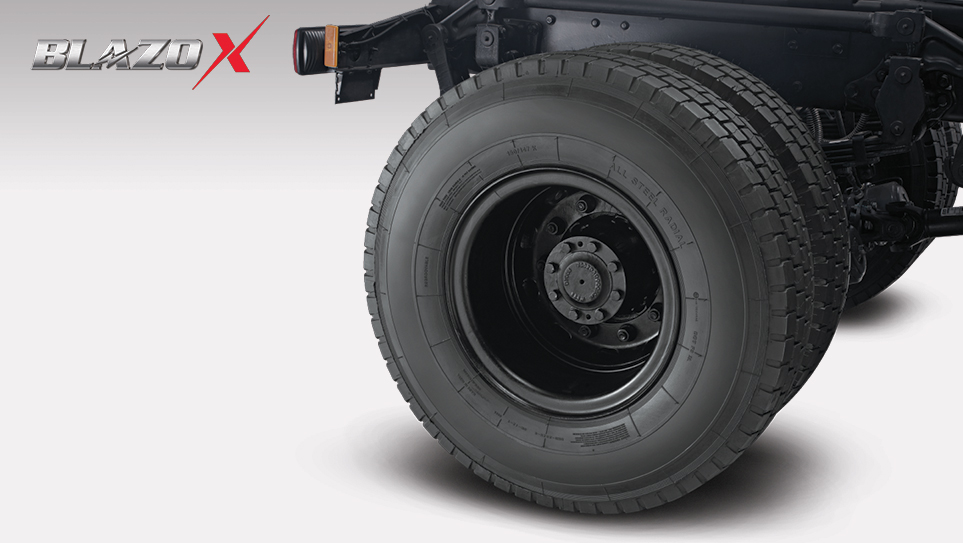

| Tyres | STD : 295/ 90R20 + 10R20 | ||||||

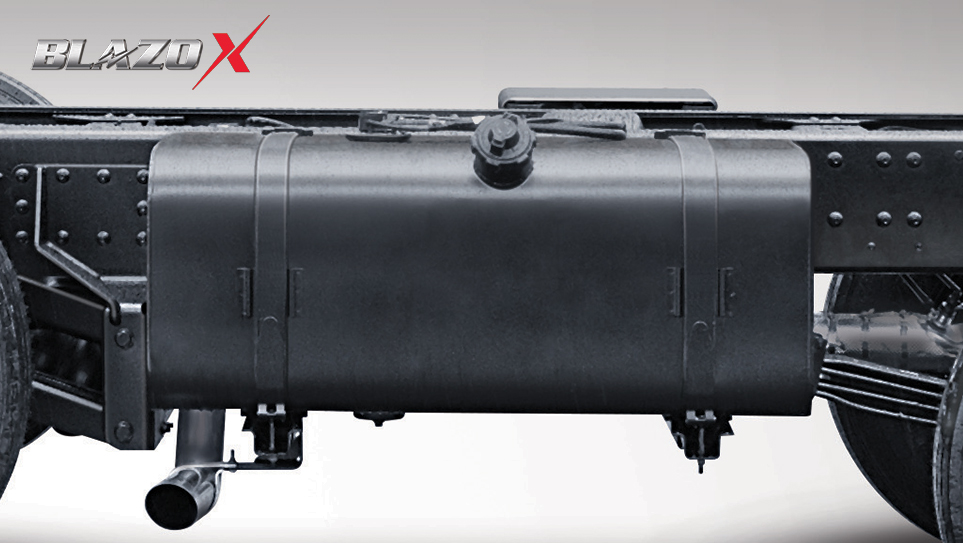

| Fuel Tank Capacity (litre) | 415 litre | ||||||
| AdBlue® Tank Capacity | 50 litre | ||||||

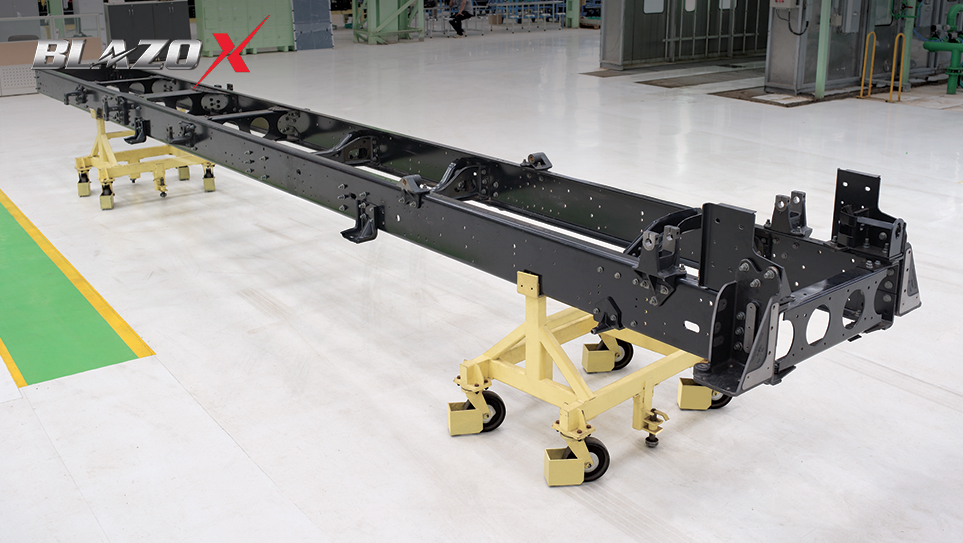

| Chassis Cross Section (mm) | 285 X 70 X 8.5 with Reinforcement | ||||||

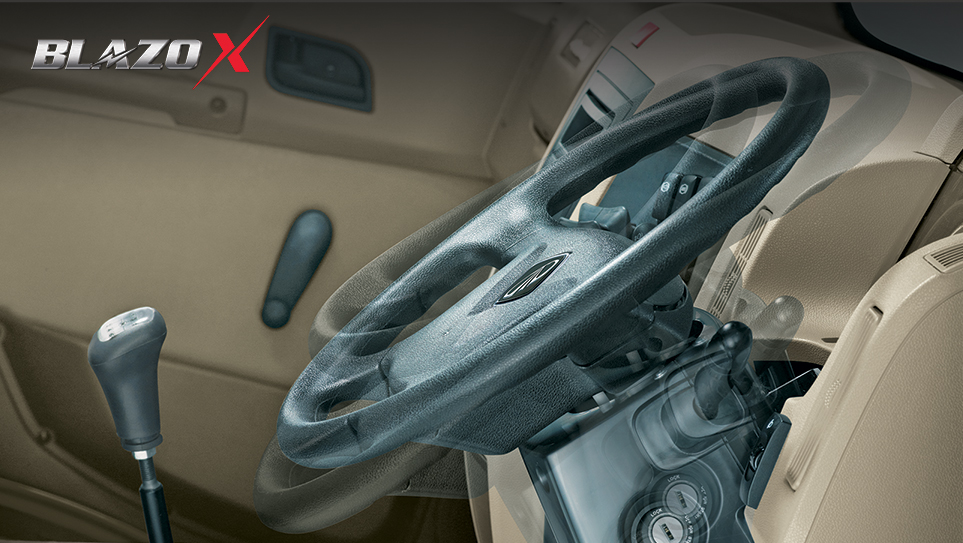

| Steering | Hydraulic Power Assist Tilt & Telescopic | ||||||

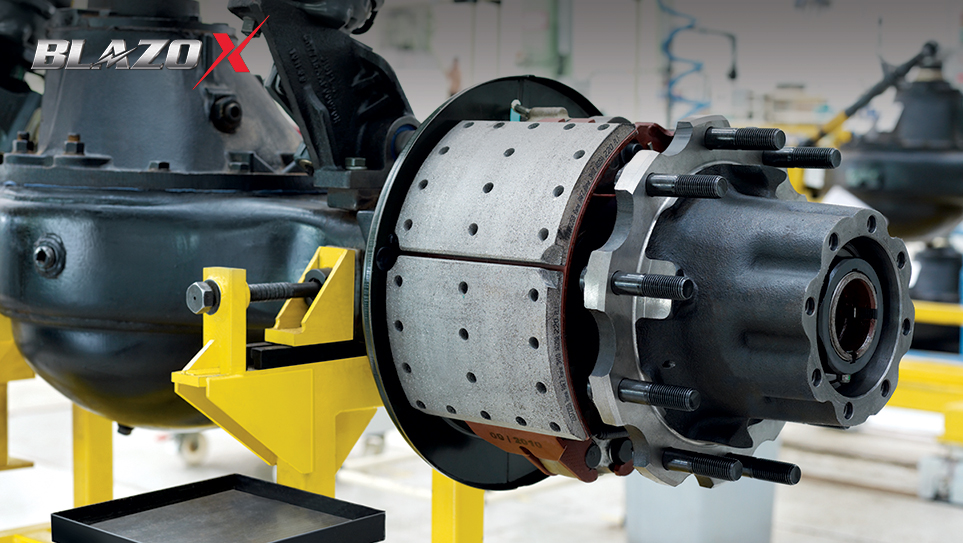

| Brakes | Full Air S Cam Dual circuit ABS 10 BAR system | ||||||
| System Voltage | 24 V (2X12) | ||||||
| Battery Rating | 150 Ah | ||||||

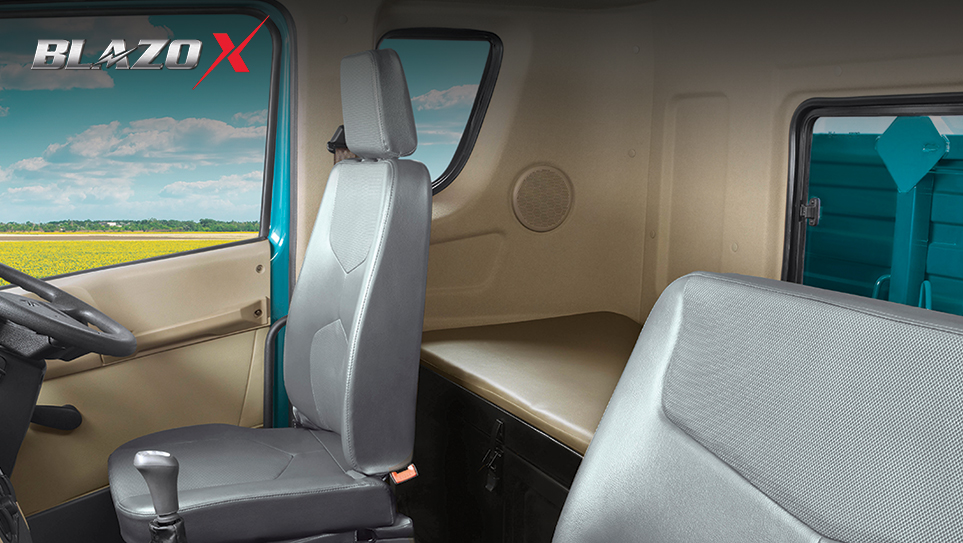

| Cabin | Single Sleeper Cab (AC Optional) | ||||||
| Max. Speed | 80 km/h (Regulated) | ||||||
| Min. Ground Clearance | 264 mm | ||||||
| Body Size | 8839 mm/ 9448.8 mm | ||||||
| ATS System | BS6 Compliant ATS with DOC/ DPF + SCR/ ASC | ||||||
AdBlue® is a registered trade name of the Verband der Automobilindustrie e.V. (VDA)
