Blazo X 28 Tipper Truck BS6 – Overview
BUILT FOR EXTRA MILEAGE. BUILT FOR ALL CONSTRUCTION NEEDS.
- 7.2 litre, high torque, low r/min engine
- mPOWER FuelSmart engine with multimode switches
- Driver Information System
- Next-Gen features and improved cabin for better productivity
- Maximize your profit with Mahindra iMAXX telematics technology
Enquiry about BLAZO X 28
If information is what you need then we’ve got the answers.
CONTACT US

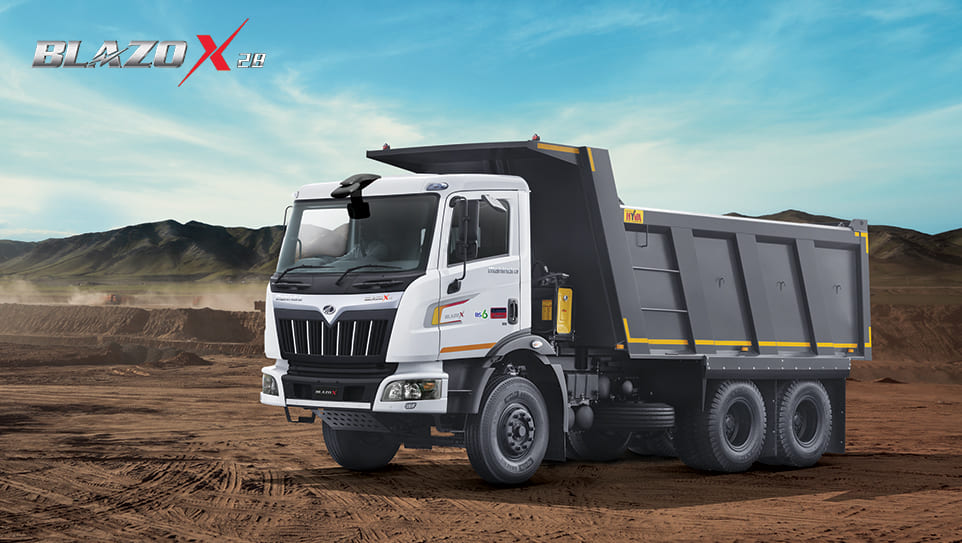

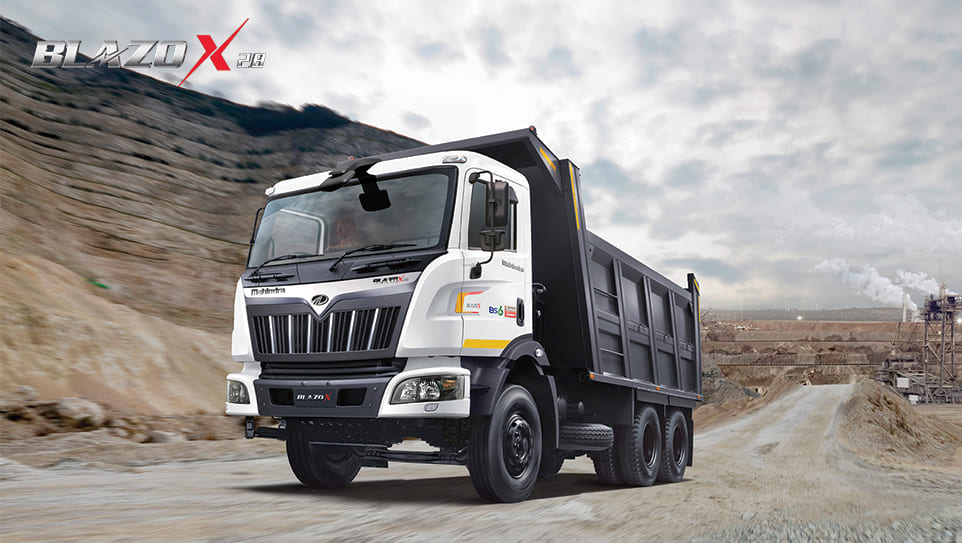

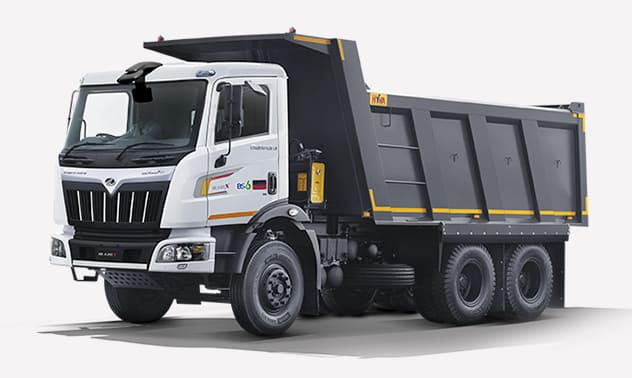

BLAZO X 28 TIPPER BS6
| GVW | 28000 kg | ||||||
|---|---|---|---|---|---|---|---|
| Engine | mPOWER 7.2 litre FuelSmart | ||||||
| Max. Power | 206 kW @ 2200 r/min | ||||||
| Max. Torque | 1050 Nm @ 1200-1700 r/min | ||||||
| Wheelbase | 4250 mm | ||||||
| Gear Box | Eaton 9 Speed and 6 Speed | ||||||
| Clutch (Diameter) | 395 mm Diaphragm type Single plate dry type | ||||||
| Gradeability | 56.70% | ||||||
| Suspension – Front | Semi Elliptical Leaf Spring with Shock Absorber | ||||||
| Suspension – Rear | Inverted leaf Bogie Suspension Optional : Bell Crank Type Suspension | ||||||
| Rear Axle | Tandem Banjo Type Single Reduction | ||||||
| Tyres | STD : 11X20 16PR 295/ 95D20 + 10X20 (Mixed) | ||||||
| Fuel Tank Capacity (litre) | 260 litre | ||||||
| AdBlue® Tank Capacity | 50 litre | ||||||
| Chassis Cross Section (mm) | 285 X 70 X 8.5 with Reinforcement | ||||||
| Steering | Hydraulic Power Assist Tilt & Telescopic | ||||||
| Brakes | Full Air S Cam Dual circuit ABS 10 BAR system | ||||||
| System Voltage | 24 V (2X12) | ||||||
| Cabin | Day Cab (AC Optional) | ||||||
| Max. Speed | 60 km/h (Regulated) | ||||||
| Min. Ground Clearance | 250 mm | ||||||
| Body Size (Cubic meter) | 16 m3 Box Body, 20 m3 Box Body, 14 m3 Rock Body | ||||||
| Tipping Body option | STD : Hyva Make Optional : Mahindra Make | ||||||
| ATS System | BS6 Compliant ATS with DOC/ DPF + SCR/ ASC |
AdBlue® is a registered trade name of the Verband der Automobilindustrie e. V. (VDA)

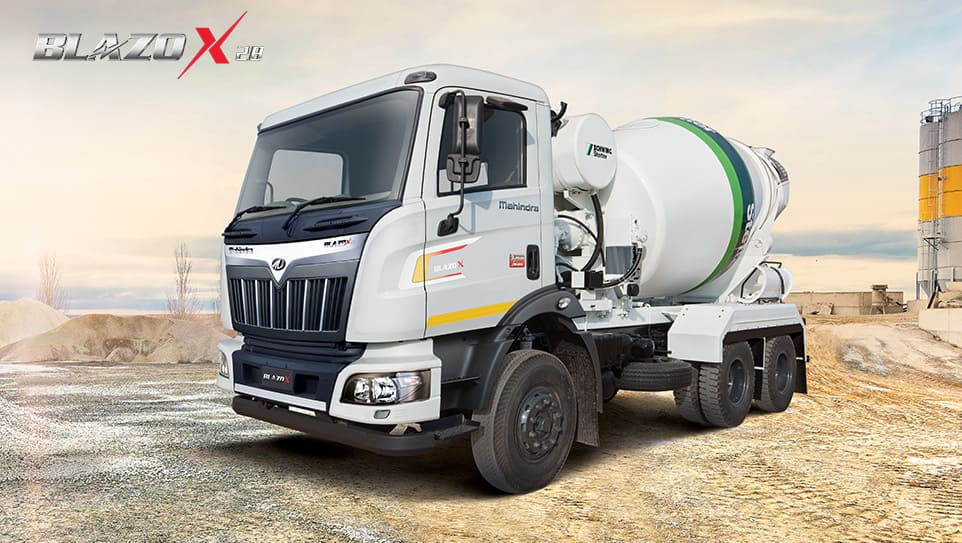

BLAZO X 28 TRANSIT MIXER BS6
| GVW | 28000 kg | ||||||
|---|---|---|---|---|---|---|---|
| Engine | mPower 7.2 litre FuelSmart | ||||||
| Max. Power | 206 kW @ 2200 r/min | ||||||
| Max. Torque | 1050 Nm @1200-1700 r/min | ||||||
| Wheelbase | 4250 mm | ||||||
| Gear Box | Eaton 6 Speed | ||||||
| Clutch (Diameter) | 395 mm Diaphragm type, Single plate dry type | ||||||
| Suspension – Front | Semi Elliptical Leaf Spring with shock absorber | ||||||
| Suspension – Rear | Bell Crank Type Suspension | ||||||
| Rear Axle | Tandem Banjo Type Single Reduction | ||||||
| Tyres | 295/ 95D20 + 10 X 20 (Mixed) | ||||||
| Fuel Tank Capacity (litre) | 260 litre | ||||||
| AdBlue® Tank Capacity | 50 litre | ||||||
| Chassis Cross Section (mm) | 285 X 70 X 8.5 with Reinforcement | ||||||
| Steering | Hydraulic Power Assist Tilt & Telescopic | ||||||
| Brakes | Full Air S Cam Dual circuit ABS 10 BAR system | ||||||
| System Voltage | 24 V (2X12) | ||||||
| Cabin | Day Cab (AC Optional) | ||||||
| Max Speed | 60 km/h (Regulated) | ||||||
| Min. Ground Clearance | 250 mm | ||||||
| Configurations (Cubic meter) | CBC for transit mixer applications TM Drum Size 6m3 & 7m3 | ||||||
| ATS System | BS6 Compliant ATS with DOC/ DPF + SCR/ ASC |
AdBlue® is a registered trade name of the Verband der Automobilindustrie e. V. (VDA)
